COPPER LONG BARREL

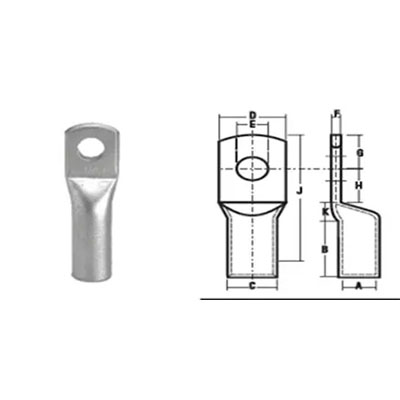

COPPER TUBE TERMINALS HEAVY DUTY LONG BARREL
| MM2 | E BOLT MMø | øA | ØC | D | F | B | K | H | G | J | SONA CAT NO. |
| 25 | M8 | 7.0 | 9.0 | 13 | 2.0 | 16 | 5 | 12 | 8 | 41 | SCUS-2827 |
| 35 | M8 | 8.0 | 10.6 | 15 | 206 | 20 | 5 | 14 | 9 | 48 | SCUS-2837 |
| 50 | M8 | 9.2 | 12.2 | 17 | 3.0 | 26 | 7 | 16 | 10 | 59 | SCUS-2847 |
| 70 | M10 | 11.5 | 15.0 | 20 | 3.5 | 28 | 7 | 19 | 12 | 66 | SCUS-2857 |
| 95 | M12 | 12.8 | 17.0 | 24 | 4.2 | 32 | 10 | 20 | 12 | 74 | SCUS-2867 |
| 120 | M12 | 14.8 | 19.6 | 28 | 4.8 | 35 | 10 | 23 | 14 | 82 | SCUS-2877 |
| 150 | M12 | 16.0 | 21.2 | 30 | 5.2 | 38 | 10 | 24 | 14 | 86 | SCUS-2887 |
| 185 | M12 | 18.0 | 24.0 | 34 | 6.0 | 43 | 12 | 23 | 17 | 95 | SCUS-2897 |
| 240 | M16 | 22.0 | 28.0 | 40 | 6.0 | 50 | 12 | 30 | 20 | 112 | SCUS-2907 |
| 300 | M16 | 24.0 | 31.0 | 44 | 7.0 | 54 | 14 | 32 | 20 | 120 | SCUS-2917 |
| 400 | M20 | 28.0 | 36.0 | 52 | 8.4 | 67 | 16 | 32 | 24 | 139 | SCUS-2927 |
| 500 | M21 | 30.0 | 41.0 | 58 | 11.0 | 80 | 20 | 34 | 22 | 156 | SCUS-2937 |
| 630 | M21 | 35.0 | 46.0 | 66 | 11.0 | 93 | 22 | 38 | 28 | 181 | SCUS-2947 |
