Specification

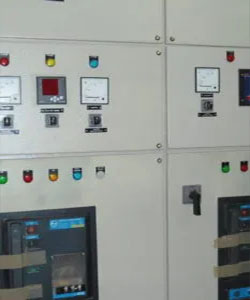

Application : Automatic DG Start- Stop and Changeover The Power Source

AC Rating Volts : 0 – 500V

AC Rating Amps : 100 – 4000A

AC Rating Frequency : 50Hz

Rated Insulation Voltage : 690V

Temp. Rise : Up to 35C Rise over 50C ambient.

Degree of Protection : IP 52, 54, 55, 65

Power Bus. Bar : Al. or Cu. Busbar

Over Current Protection : Properly

Panel Cote : 7 tank Powder Coated Paint and as per Client’s requirement.

Panel Mount :  Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame.

Current Monitoring : Possible

Phase Monitoring : Possible

Configuration : Based on customer’s requirement.

Type test Performed : Short Circuit with Stand temp. rise with stand, Degree of Protection.

Product Warranty : At least 12 Month.
